Pneumohydraulic rivet gun Gesipa TAURUS 1 SPEED RIVET (Ø 2.4-4.8)

Pneumatic hydraulic riveter Gesipa TAURUS 1 SPEED RIVET for cassette rivets Ø 2.4-4.8

Gesipa TAURUS 1 SPEED RIVET is a new tool for installing cassette rivets from the leading manufacturer of riveting equipment GESIPA. The TAURUS series of tools uses a unique modular system developed by GESIPA, which minimizes the need for a large number of spare parts and allows maintenance to be carried out easily and quickly, as well as providing high power for such a light tool. You will be able to customize your TAURUS riveter according to the requirements of each individual task. A wide range of options offers the user great flexibility.

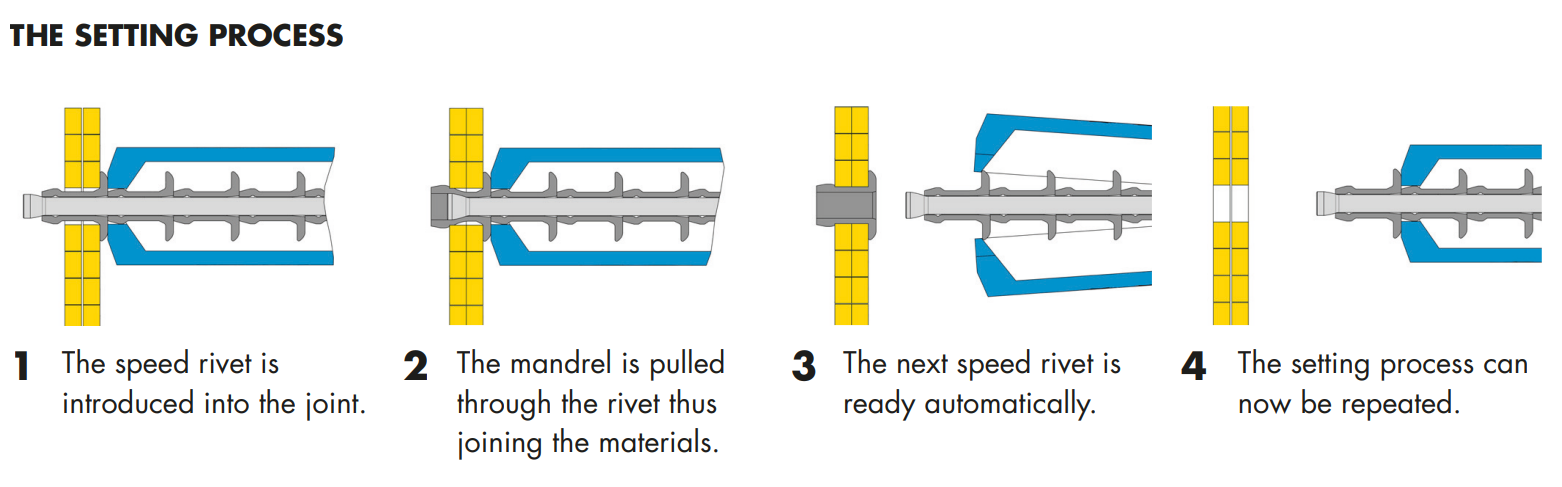

Speed Rivet Technology, also called cassette rivet technology, is a connection method that requires access from only one side and, thanks to the use of pre-packed rivets in cassettes and automatic feeding, allows to achieve short cycles. After the deposition operation, the riveter automatically delivers the next cassette rivet. This technology is used in industry, electronics, the production of lighting devices, lightweight structures or in aviation. The convenient ability to work with one hand allows you to quickly find the hole and easily perform connection operations.

Optimum use of compressed air is a cost-effective technology that has no analogues in the world.

The air required for the rivet installation operation is used twice by the GESIPA® system: first for the deposition of the extraction rivet and then for ejection. Thus, with the double use of compressed air, there is no need for expensive clean compressed air, which is required in other tools offered on the market, even just to throw out the rod. And, finally, thanks to this technology, the noise level of TAURUS® series instruments is significantly reduced.

The TAURUS 1 SPEED RIVET model has a number of advantages over conventional rivet riveting tools:

• High speed of installation operation, short cycle time

• Safe operation thanks to disposable rod and optional automatic shut-off system

• Ergonomic model that does not cause fatigue during work

• Light and compact design

• Modular implementation based on TAURUS®

• Softgrip handle

• Simple, tool-free reconfiguration

Complete set:

• 1 bottle of hydraulic oil of 100 ml

• 1 syringe for refilling oil

• 1 adapter for filling oil

• operating instructions with a list of spare parts

• slide retainer (max. mandrel Ø 2.7 mm)

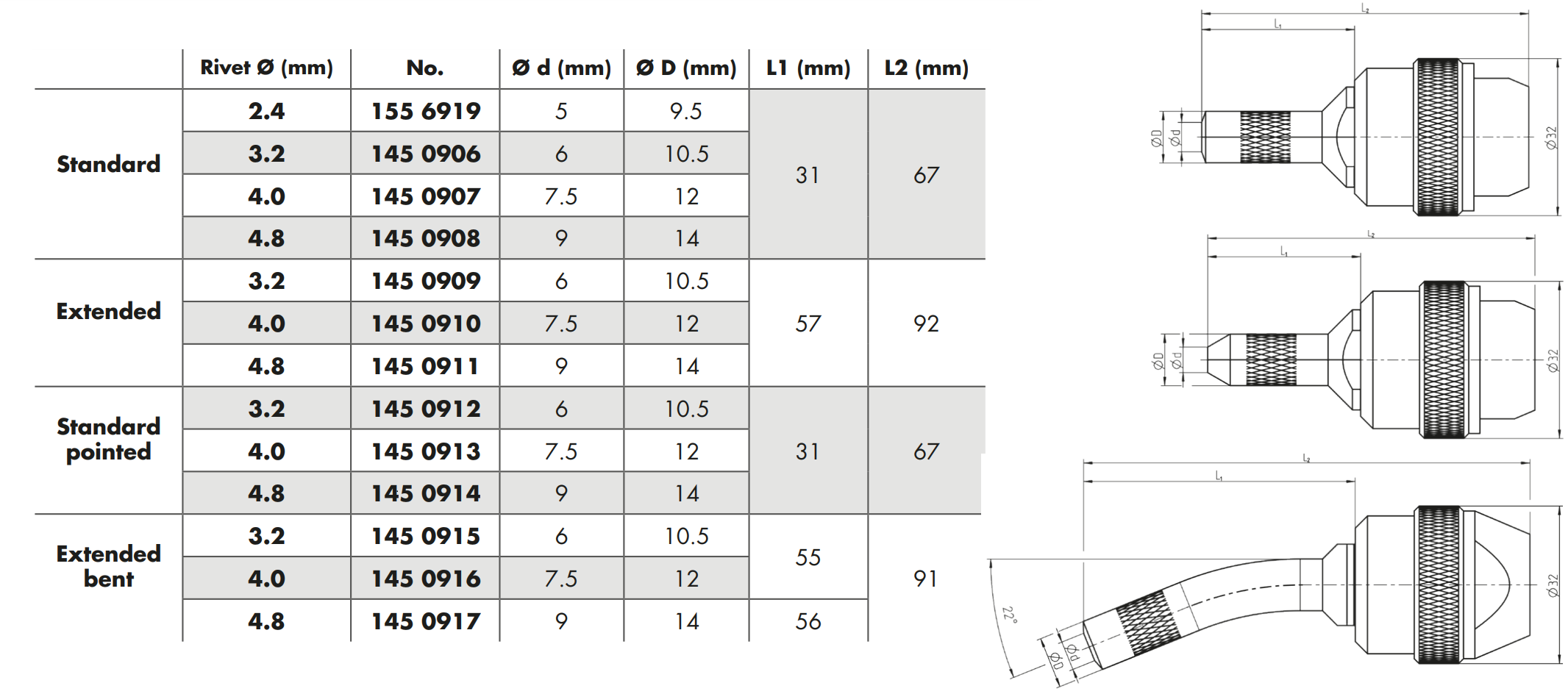

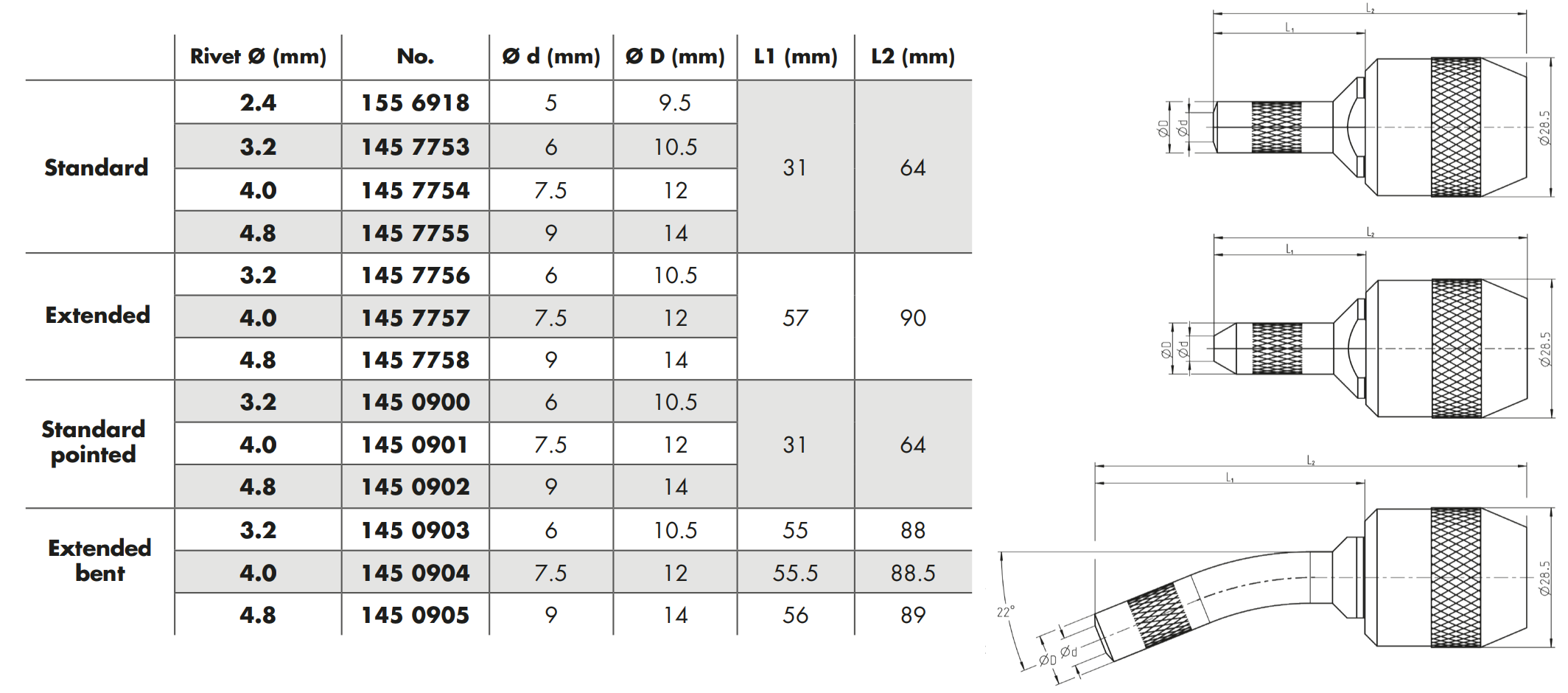

PAY ATTENTION! The tool is supplied without a rivet attachment, the attachment for each size is ordered separately from the tool.

Working range:

The TAURUS 1 SPEED RIVET works with all G-SPEED and SPEED BULB rivet materials, from 2.4mm to 4.8mm in diameter.

Manufacturer: Germany
